Breville Pump Not Working: Diagnosis and Repair Guide

Woke up last week, pressed the brew button, and… nothing. Complete silence from where the pump should’ve been humming. That sinking feeling when you realize your morning espresso just got complicated.

The pump is basically the heart of your Breville. It’s what shoves water through your coffee at those 9 bars of pressure we all chase for proper extraction. When it dies or starts acting weird, you’ve got a machine-shaped paperweight.

Good news though—after dealing with pump problems on my own Barista Express and digging through forums for hours, I’ve learned most of these issues are actually fixable at home. Let me walk you through diagnosis and solutions so you can get back to pulling shots.

How Breville Pumps Work

Helps to know what’s actually inside your machine:

Vibratory Pumps (Most Models)

Found in: Barista Express, Barista Pro, Bambino, Infuser

How they work:

• An electromagnetic coil pulses really fast (60 times per second)
• Creates vibration that moves a small piston back and forth
• Piston pushes water through one-way valves
• Simple, cheap to replace, surprisingly reliable for home use

What to expect:

• That distinct humming noise during brewing—totally normal
• 15-17 bar maximum pressure capability
• Self-limiting—automatically backs off when target pressure is hit
• Generally lasts 5-8 years if you don’t abuse it

Rotary Pumps (Premium Models)

Found in: Dual Boiler, Oracle

How they work:

• Electric motor spins internal gears
• Creates smooth, consistent pressure
• Way quieter than vibratory
• Also way more expensive when something breaks

What to expect:

• Smooth, almost silent operation
• Rock-steady pressure delivery
• Closer to commercial espresso machine performance
• Can last 10+ years with decent maintenance

Common Pump Problems

Problem 1: Pump Doesn’t Start at All

Symptoms:

• Hit the brew button, absolutely nothing happens
• No sound anywhere near the pump
• Everything else seems fine—lights work, grinder works

Possible causes:

• Power supply weirdness
• Dead pump motor
• Loose wire somewhere inside
• Blown internal fuse
• Control board gave up

Diagnostic steps:

1. Start with the obvious:

   • Is the machine actually on and heated up?
   • Does the grinder work? Steam wand?
   • Try a different outlet—rule out the socket

2. Listen really carefully:

   • Any click at all when you hit brew?
   • Dead silence or a faint hum trying to happen?

3. Classic IT move—power cycle:

   • Turn off, unplug completely
   • Wait a solid 5 minutes
   • Plug back in, try again

What the sounds tell you:

• Clicking but no pump action = probably the pump motor itself
• No click at all = might be the control board
• Complete silence with other functions working = could be anything from a fuse to wiring

Honestly, if you’re getting total pump failure with no response, this often needs professional eyes. But it doesn’t hurt to try the basics first.

Problem 2: Pump Runs but No Water Flows

Symptoms:

• You hear the familiar hum—pump’s definitely running
• But nothing comes out of the grouphead
• Sometimes works, sometimes doesn’t

This one drove me crazy for two days before I figured it out.

Possible causes:

• Air lock trapped in the system
• Something clogged in the water pathway
• Solenoid valve stuck or failed
• Water tank not seated right (happens more than you’d think)
• Tank empty or blocked at the bottom valve

Step-by-step diagnosis:

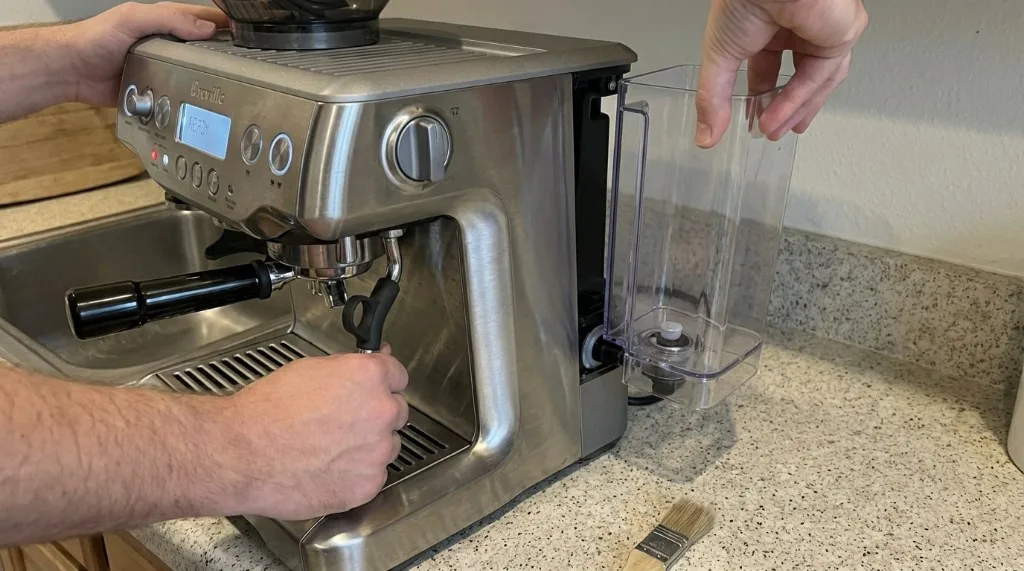

1. Check that water tank:
   • Actually full? Don’t laugh, I’ve done it
   • Did it click when you put it in?
   • Clean around the valve at the bottom—coffee residue gets everywhere

2. Test for air lock:

   • Open your steam wand valve
   • Let the pump run for 30 seconds straight
   • Eventually you should get water spitting out

3. Inspect the pathway:

   • Pop off the shower screen
   • Look for obvious gunk buildup
   • Try running water without the portafilter locked in

Solutions:

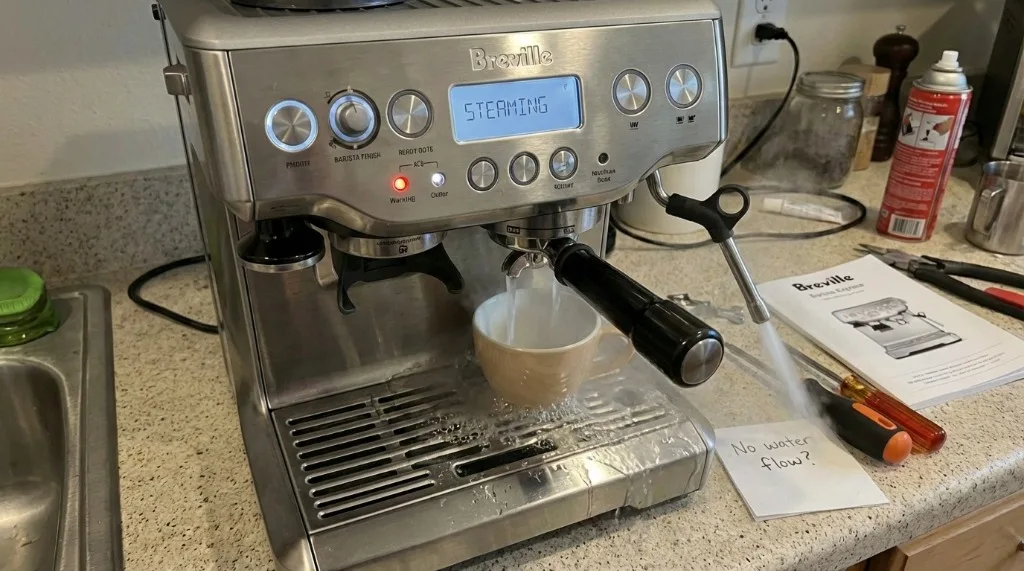

Priming that pump:

My go-to fix for “pump runs, nothing flows”:

1. Fill tank all the way to max
2. Open the steam/hot water valve
3. Turn on the pump
4. Wait—sometimes 30+ seconds—until water flows steady
5. Close the valve
6. Try pulling a shot normally

Clearing stubborn air locks:

1. Take out the portafilter completely
2. Run pump 5-10 seconds
3. Put portafilter back
4. Run a water-only backflush (no tablet)
5. Try a normal extraction

When the pathway is clogged:

1. Descale—scale is usually the culprit
2. Deep clean that shower screen
3. If you’re comfortable, check the solenoid valve

Problem 3: Weak Water Pressure/Slow Flow

Symptoms:

• Water dribbles out instead of flowing properly
• Pressure gauge barely moves
• Takes forever to get any espresso
• Thin, pathetic stream

Possible causes:

• Scale buildup choking the water path
• Gunked-up shower screen
• Pump wearing out and losing pressure
• Grind way too fine (not actually a pump problem)

Diagnosis:

First, figure out if it’s your grind or the pump:

1. Run water through an empty portafilter
2. Strong flow = your grind is too fine, pump is fine
3. Still weak = now we’re looking at pump or blockage

Solutions:

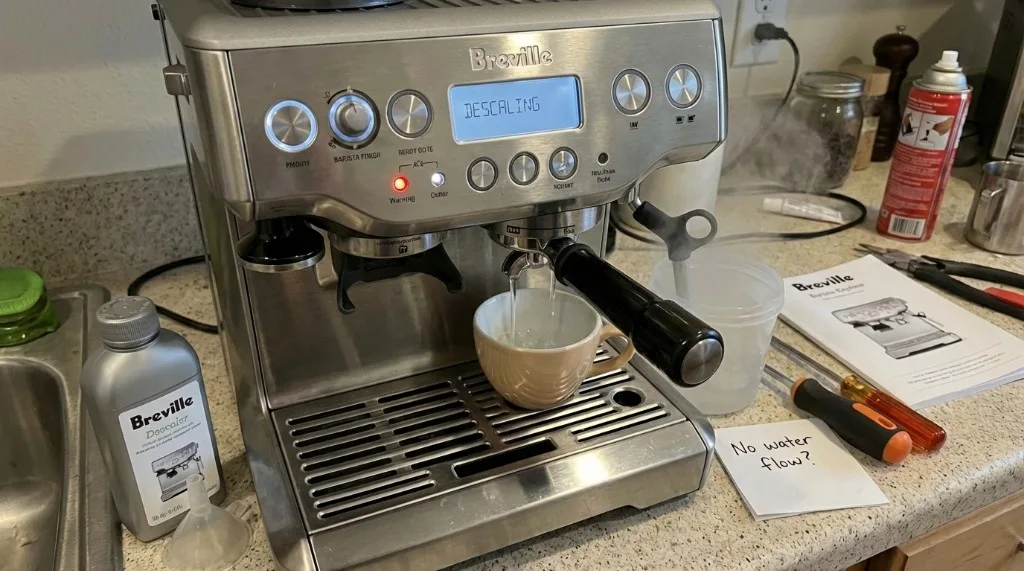

Descale already:

1. Run a proper descale cycle
2. Scale buildup is the number one cause of pressure loss—by far
3. Use Breville descaler or citric acid

Deep clean everything:

1. Soak that shower screen in Cafiza
2. Clean the dispersion block behind it
3. Full backflush with cleaning tablet
4. Make sure every hole is clear

If cleaning doesn’t fix it:

• Pump might be worn out
• Might need OPV adjustment
• Probably time to call in help

Problem 4: Pump Makes Unusual Noises

Symptoms:

• Grinding or scraping that wasn’t there before
• Humming way louder than normal
• Clicking without the pump actually running
• Rattling during every shot

I had a grinding noise start up about 4 years in. Turned out to be the beginning of the end for that pump.

What the sounds mean:

Sound	Likely Cause	Solution
Grinding	Pump bearings wearing out	Replacement time
Extra loud hum	Pump working too hard	Coarsen grind, descale
Just clicking	Solenoid having issues	Check or replace solenoid
Rattling	Vibration loosened something	Anti-vibe mat, check mounting

Check out our noise troubleshooting guide if you want to go deeper on weird sounds.

Problem 5: Pump Runs Continuously

Symptoms:

• Pump won’t stop even after you release the button
• Runs during heat-up when it shouldn’t
• Water just keeps flowing endlessly

This one’s a little scary. Don’t ignore it.

Possible causes:

• Brew button physically stuck
• Control board malfunction
• Solenoid valve stuck in open position

Do this immediately:

1. Hit the power switch
2. Unplug from the wall
3. Let it cool down completely

Check the simple stuff:

• Is the button actually stuck down?
• Clean around all the buttons with a slightly damp cloth
• Power on and test

If it keeps happening:

• Control board or solenoid problem
• Get professional help
• Seriously don’t keep using it—that’s how water damage happens

Advanced Pump Repairs

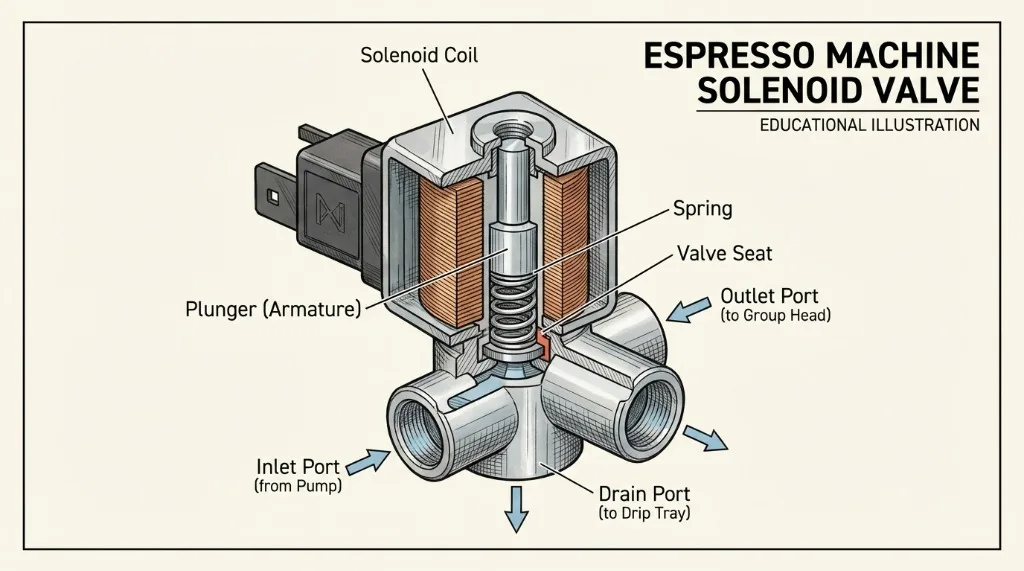

Checking the Solenoid Valve

The solenoid is what actually opens and closes the water flow to your grouphead. When it fails, things get weird.

Signs your solenoid is acting up:

• Pump goes but no water reaches the group
• Backflush doesn’t work right
• You hear clicking but nothing flows

Cleaning the solenoid:

⚠️ Real talk: This means taking your machine apart. Only do this if you’re comfortable with it and understand the risks.

1. Unplug and let the machine cool completely
2. Remove panels to access the solenoid (location varies by model)
3. Disconnect the solenoid valve
4. Pull out the plunger and inspect it
5. Clean everything with Cafiza solution
6. Check the O-rings—cracked ones need replacement
7. Put it all back together and test

Pump Replacement

When nothing else works, sometimes you just need a new pump.

Red flags that say replacement time:

• No response after every troubleshooting trick in the book
• Grinding sounds coming from the pump itself
• Pump is 5-7+ years old
• Visible damage or leaking around the pump

Your options:

Option	Cost	Difficulty
DIY replacement	$40-80 (parts)	Moderate to challenging
Breville service	$150-250	They handle it
Third-party repair shop	$100-150	Also handled

If you’re going DIY:

1. Order the right pump—make sure it matches your exact model
2. Watch at least 2-3 YouTube videos specific to your machine
3. Take photos of every wire connection before disconnecting
4. Note which way everything is oriented
5. Go slow—rushing causes mistakes

When to call the pros:

• Machine still under warranty (don’t void it)
• You’ve never opened an appliance before
• Oracle or Dual Boiler (they’re more complicated inside)

Prevention: Keeping Your Pump Healthy

Water Quality

Scale is what kills pumps. Not age, not heavy use—mineral buildup.

Filter your water:

• Brita pitcher, in-tank filter, whatever works
• Cuts scale formation by 90% or more
• Protects everything inside, not just the pump

What not to use:

• Straight unfiltered hard water (pump killer)
• Pure distilled water (actually causes its own issues)
• Water softener output with high sodium

Regular Descaling

Descaling schedule based on water:

Water Type	How Often
Filtered/soft	Every 3 months
Medium hardness	Every 2 months
Hard water	Monthly, no exceptions

When that descale light comes on, deal with it. It’s there to save your pump and boiler from slow death.

Proper Operation

Morning routine:

1. Run 5 seconds of water through the grouphead
2. Quick purge of the steam wand
3. Double-check the water tank level

End of day:

1. Brief flush through the grouphead
2. Empty drip tray if it’s getting full
3. Let the machine dry out a bit before turning off

Avoid These Pump Killers

• Running dry (empty tank while brewing = very bad)
• Grinding super fine so the pump strains constantly
• Ignoring weird sounds (they’re warnings)
• Skipping maintenance because everything seems fine
• Using unfiltered tap water in a hard water area

Model-Specific Pump Information

Barista Express (BES870/875)

• Pump type: 15-bar vibratory
• Common issues: Air locks, scale buildup
• DIY replacement: Doable if you’re handy
• Compatible part: Ulka EP5 pump works

Barista Pro (BES878)

• Pump type: 15-bar vibratory
• Common issues: Pretty much same as Express
• ThermoJet heater: Doesn’t affect pump behavior
• Replacement: Similar process to Express

Bambino / Bambino Plus

• Pump type: 15-bar vibratory
• Common issues: Air locks (compact design makes water path trickier)
• Note: Everything’s packed in tight—harder to access
• Recommendation: Professional service for internal stuff

Dual Boiler (BES920)

• Pump type: Rotary
• Common issues: Fewer problems overall than vibratory
• Longevity: Built to last a long time
• Replacement: Really recommend professional for this one

Oracle / Oracle Touch

• Pump type: Rotary
• Complexity: Most complex Breville machines
• Issues: Rare if you maintain it properly
• Service: Professional only unless you really know what you’re doing

Troubleshooting Decision Tree

Pump Issue?
    │
    ├─ Pump doesn't start at all
    │   ├─ Other functions work? → Pump or control board failure
    │   └─ Nothing works? → Power supply issue
    │
    ├─ Pump runs, no water
    │   ├─ Tank seated properly? → Reseat tank
    │   ├─ Gurgling sounds? → Prime pump, clear air
    │   └─ Still no flow? → Check solenoid, descale
    │
    ├─ Weak pressure
    │   ├─ Without coffee: weak? → Descale, clean pathway
    │   └─ Without coffee: strong? → Grind issue, not pump
    │
    └─ Unusual sounds
        ├─ Grinding/scraping → Pump bearings (replace)
        ├─ Loud hum → Working hard (descale, adjust grind)
        └─ Rattling → Vibration issue (mat, level)

Key Takeaways

• Most pump issues are preventable—decent water and regular descaling go a long way
• Air locks are super common—prime the pump before panicking
• Weak pressure usually means scale—descale first, suspect pump failure second
• Your pump talks to you—weird noises are early warnings, not background music
• Know your limits—pump replacement isn’t rocket science, but it’s not beginner stuff either
• Vibratory pumps last 5-8 years with reasonable care

Your pump works hard for every single shot you pull. Treat it right—filtered water, regular descaling, quick attention when something seems off—and it’ll keep pushing perfect espresso for years to come.

---

Related Guides:

• Complete Descaling Guide
• Noise Troubleshooting
• Error Codes Guide
